Flange Gasket Hardware Kits

Purchase Partners produces "Flange Assembly Sets (FAS)", also commonly referred to as bolt and gasket kits.  Our kits are customized to suit almost any flange connection or flange insulation set. We have a wide variety of fasteners and gasket material readily available.  FAS is made to order and can process most orders with a minimal turn-around time. We use only the best gasket materials and products available on the market. For customers with repetitive histories, we stock inventories that reflect typical requirements for same day shipping, when needed.


The following is a listing of our Flange Assembly Sets (FAS).  When inquiring product, you can reference our part number or just identify the flange size, pipe size, bolt size and number of bolts per set.  Don't forget to reference the material specified for the gasket too.








 FLANGE PIPE BOLT SIZE BOLTS Purchase Partners
SIZE SIZE PER SET Part Number
150# 1/2" 1/2"-13 X 2" 4 FAS-150# (1/2")+ Material Code
150# 3/4" 1/2"-13 X 2" 4 FAS-150# (3/4")+ Material Code
150# 1" 1/2"-13 X 2" 4 FAS-150# (1")+ Material Code
150# 1-1/4" 1/2"-13 X 2-1/4" 4 FAS-150# (1-1/4")+ Material Code
150# 1-1/2" 1/2"-13 X 2-1/2" 4 FAS-150# (1-1/2")+ Material Code
150# 2" 5/8"11 X 2-1/2" 4 FAS-150# (2")+ Material Code
150# 2-1/2" 5/8"-11 X 2-3/4" 4 FAS-150# (2-1/2")+ Material Code
150# 3" 5/8"-11 X 3" 4 FAS-150# (3")+ Material Code
150# 4" 5/8"-11 X 3" 8 FAS-150# (4")+ Material Code
150# 5" 3/4"-10 X 3" 8 FAS-150# (5")+ Material Code
150# 6" 3/4"-10 X 3-1/4" 8 FAS-150# (6")+ Material Code
150# 8" 3/4"-10 X 3-1/2" 8 FAS-150# (8")+ Material Code
150# 10" 7/8"-9 X 3-3/4" 12 FAS-150# (10")+ Material Code
150# 12" 7/8"-9 X 4" 12 FAS-150# (12")+ Material Code
150# 14" 1"-8 X 4-1/2" 12 FAS-150# (14")+ Material Code
150# 16" 1"-8 X 4-1/2" 16 FAS-150# (16")+ Material Code
150# 18" 1-1/8"-8 X 5" 16 FAS-150# (18")+ Material Code
150# 20" 1-1/8"-8 X 5" 20 FAS-150# (20")+ Material Code
150# 24" 1-1/4"-8 X 6" 20 FAS-150# (24")+ Material Code
300# 1/2" 1/2"-13 X 2" 4 FAS-300# (1/2")+ Material Code
300# 3/4" 5/8"-11 X 2-1/2" 4 FAS-300# (3/4")+ Material Code
300# 1" 5/8"-11 X 2-1/2" 4 FAS-300# (1")+ Material Code
300# 1-1/4" 5/8"-11 X 2-3/4" 4 FAS-300# (1-1/4")+ Material Code
300# 1-1/2" 3/4"-10 X 3" 4 FAS-300# (1-1/2")+ Material Code
300# 2" 5/8"-11 X 3" 8 FAS-300# (2")+ Material Code
300# 2-1/2" 3/4"-10 X 3-1/4" 8 FAS-300# (2-1/2")+ Material Code
300# 3" 3/4"-10 X 3-1/2" 8 FAS-300# (3")+ Material Code
300# 4" 3/4"-10 X 3-3/4" 8 FAS-300# (4")+ Material Code
300# 5" 3/4"-10 X 4" 8 FAS-300# (5")+ Material Code
300# 6" 3/4"-10 X 4" 12 FAS-300# (6")+ Material Code
300# 8" 7/8"-9 X 5" 12 FAS-300# (8")+ Material Code
300# 10" 1"-8 X 5" 16 FAS-300# (10")+ Material Code
300# 12" 1-1/8"-8 X 6" 16 FAS-300# (12")+ Material Code
300# 14" 1-1/8"-8 X 6" 20 FAS-300# (14")+ Material Code
300# 16" 1-1/4"-8 X 6-1/2" 20 FAS-300# (16")+ Material Code
300# 18" 1-1/4"-8 X 7" 24 FAS-300# (18")+ Material Code
300# 20" 1-1/4"-8 X 7" 24 FAS-300# (20")+ Material Code
300# 24" 1-1/2"-8 X 7-1/2" 24 FAS-300# (24")+ Material Code
600# 1/2" 1/2"-13 X 3-1/4" 4 FAS-600# (1/2")+ Material Code
600# 3/4" 5/8"-11 X 3-1/2" 4 FAS-600# (3/4")+ Material Code
600# 1" 5/8"-11 X 3-3/4" 4 FAS-600# (1")+ Material Code
600# 1-1/4" 5/8"-11 X 4" 4 FAS-600# (1-1/4")+ Material Code
600# 1-1/2" 3/4"-10 X 4-1/4" 4 FAS-600# (1-1/2")+ Material Code
600# 2" 5/8"-11 X 4-1/4" 8 FAS-600# (2")+ Material Code
600# 2-1/2" 3/4"-10 X 4-3/4" 8 FAS-600# (2-1/2")+ Material Code
600# 3" 3/4"-10 X 5" 8 FAS-600# (3")+ Material Code
600# 4" 7/8"-9 X 5-3/4" 8 FAS-600# (4")+ Material Code
600# 5" 1"-8 X 6-1/2" 8 FAS-600# (5")+ Material Code
600# 6" 1"-8 X 6-3/4" 12 FAS-600# (6")+ Material Code
600# 8" 1-1/8"-8 X 7-3/4" 12 FAS-600# (8")+ Material Code
600# 10" 1-1/4"-8 X 8-1/2" 16 FAS-600# (10")+ Material Code
600# 12" 1-1/2"-8 X 8-3/4" 20 FAS-600# (12")+ Material Code
600# 14" 1-3/8"-8 X 9-1/4" 20 FAS-600# (14")+ Material Code
600# 16" 1-1/2"-8 X10" 20 FAS-600# (16")+ Material Code
600# 18" 1-5/8"-8 X 11" 20 FAS-600# (18")+ Material Code
600# 20" 1-5/8"-8 X 11-1/2" 24 FAS-600# (20")+ Material Code
600# 24" 1-7/8"-8 X 13" 24 FAS-600# (24")+ Material Code

GASKET MATERIALS AVAILABLE
We have a wide variety of gasket materials readily available and can process most orders with a minimal turn-around time. We use only the best gasket materials and products available on the market.
Blue Gard - All Styles
Buna Nitrile
Butyl
Compressed Fiber - All Styles
Diaphragm
EPDM -All Styles
Expanded Teflon All Styles
Garlock - All Styles		 Graphoil - All Styles
Heat Exchange
Klinger - All Styles
Neoprene - All Styles
Nitrile
Nitrile FDA Approved White
Non-Asbestos - All Styles
Nylon
Phenolic - All Styles
RTJ Ring Joints - All Styles
Rubber - All Styles
Spiral Wound Flex Gaskets - All Styles
Teflon - All Styles
Viton - All Styles

1.  Manufacturer's stamp - "Leader, Furon, Garlock, etc."
2.  Outer ring material stamp when other than carbon steel "CS".
3.  Nominal pipe size and pressure class.
4.  Non-metallic fillers are marked with color stripes on the outer ring. Metaillic fillers are color coded on full rim of outer ring.
5.  Winding metal and filler material.
6.  Inner ring material stamped on inner or outer ring. Inner ring gaskets are noted by CGI, WRI, or LG-11-IR.
7.  Manufactured to ASME B16.20 latest edition or applicable dimensional and quality specifications.



SPIRAL WOUND GASKET IDENTIFICATION COLOR


Other Gasket Sets Available
INSULATION SETS
Gaskets of any Material Cut - Type "E" & "F"
Single & Double Washers Sets
Tubing - Polyethylene, Phenolic, & Mylar
Washers - Phenolic, Compressed Fiber,
& Zinc Carbon Steel

FLANGE ACCESSORY SETS
Standard Bolt & Gasket Sets
Flange Insulation Sets With or Without Bolts
Wall Flange Sets
Lug, Wafer, & Semi-Lug Butterfly Bolt Sets
Stud & Gasket Sets in any Combination

Construction Fasteners

AnchorsAnchor

Mechanical Anchors and Fasteners, Gas and Epoxy Fastening Systems

Anchor Bolts, Expansion Anchors (Power-Bolt®, Power-Stud™, Lok-Bolt™, Set-Bolt™); Screw Anchors (Wedge-Bolt®, Tapper®, Bolt & Shield Anchors: Steel Dropin™, Single™, Calk-In™, Lag Shield™, and Snake“); Rod Hanging Systems (Bang-It™ Concrete Insert, Wood-Knocker™, Vertigo®); Impact Anchors (Spike®, Drive); Pin Anchors (Zamac Hammer-Screw®, Zamac Nailin®, Nylon Nailin®); Powder Actuated Fastening Systems; Gas Fastening Systems (Trak-It® C3 & C3-ST, C4-LT, Pins, Nails, Fuel, Accessories); Other Miscellaneous (Anchor L-Bolt, Adhesives & Foam, Epoxy Systems, Lag Shied, Roofing, Toggle Wing Anchors)



Bolts - Structural Fastening450

  •         Tension Control Structural Bolt/Nut/Washer Assemblies  [ASTM F1852(A325TC) and F2280(A490TC)]
  •          ASTM A325 Hex Head Structural Bolts,  ASTM A490 Hex Head Structural Bolts
  •         ASTM A194 Grade 2H Heavy Hex Nuts, ASTM A563 Grade DH, DH3 Heavy Hex Nuts
  •         ASTM A563 Grade A Finished Hex Nuts
  •         Guard Rail Nuts, Culvert Nuts, Special Fasteners Made to Customer Specifications



Screws



  • Rod:  Acme Thread, Alloy Steel, Aluminum, Brass, Hot Dipped Galvanized, Left-hand Thread, Metric, Nylon, Stainless Steel, Steel Coarse, Fine

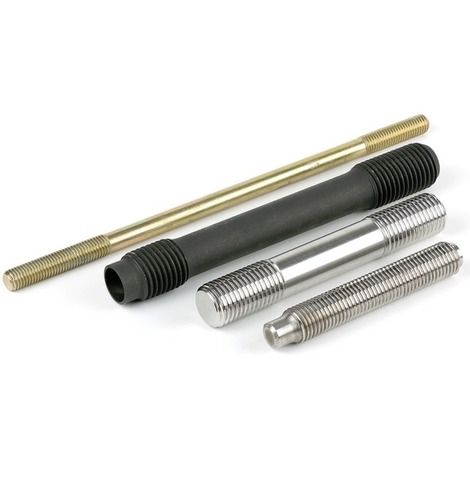

  • Studs:  Fully Threaded, Double End, High and Low Temperature

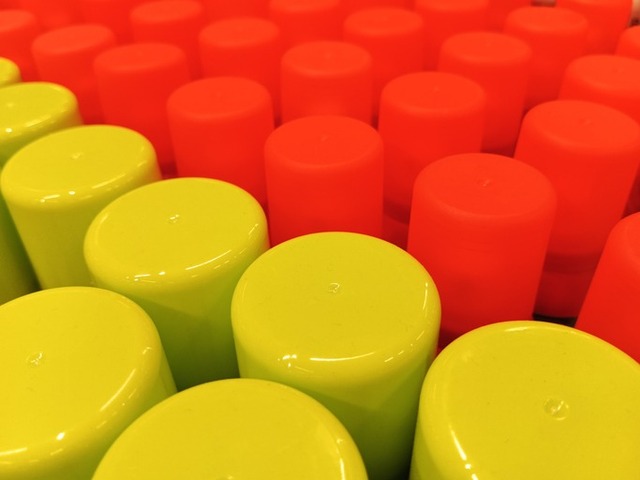

Caps, Closures and Plugs

End CapsPoly-Caps, Poly-Plugs, Pull-Ring, Side Pull, Flared Fitting, End Caps, Flanged & Face Seal Caps, Vinyl Caps

Materials:  Polyethylene, Vinyl, Silicone, Rubber, Adhesives
Applications:  Medical, Masking, Thread & Flange Protection, Eenergy, Electronics, Automotive, Hydraulics, Compressed Gas and more.

Cable Ties

4CableTiesCABLE TIES:  Miniature, Standard, Intermediate, Heavy Duty, Extra Heavy Duty, Releasable

Standard Nylon Cable Ties:18, 40, 50, 120, 175, 250 lb. tensile strengths in 4" to 48" Lengths; Releasable, Tote Box, Beaded, Halar, Tefzel, Mounting Hole, Identification, Push Mount and Stainless Cable Ties; Mounting Pads, Screw and Wall Mounts

Accessories:  Clamps, Cable Wrap, Cable Tie Mounting Hole Style, Mounting Pads, Wind and Button Push Mounts, Bridge Sleeves
